Description

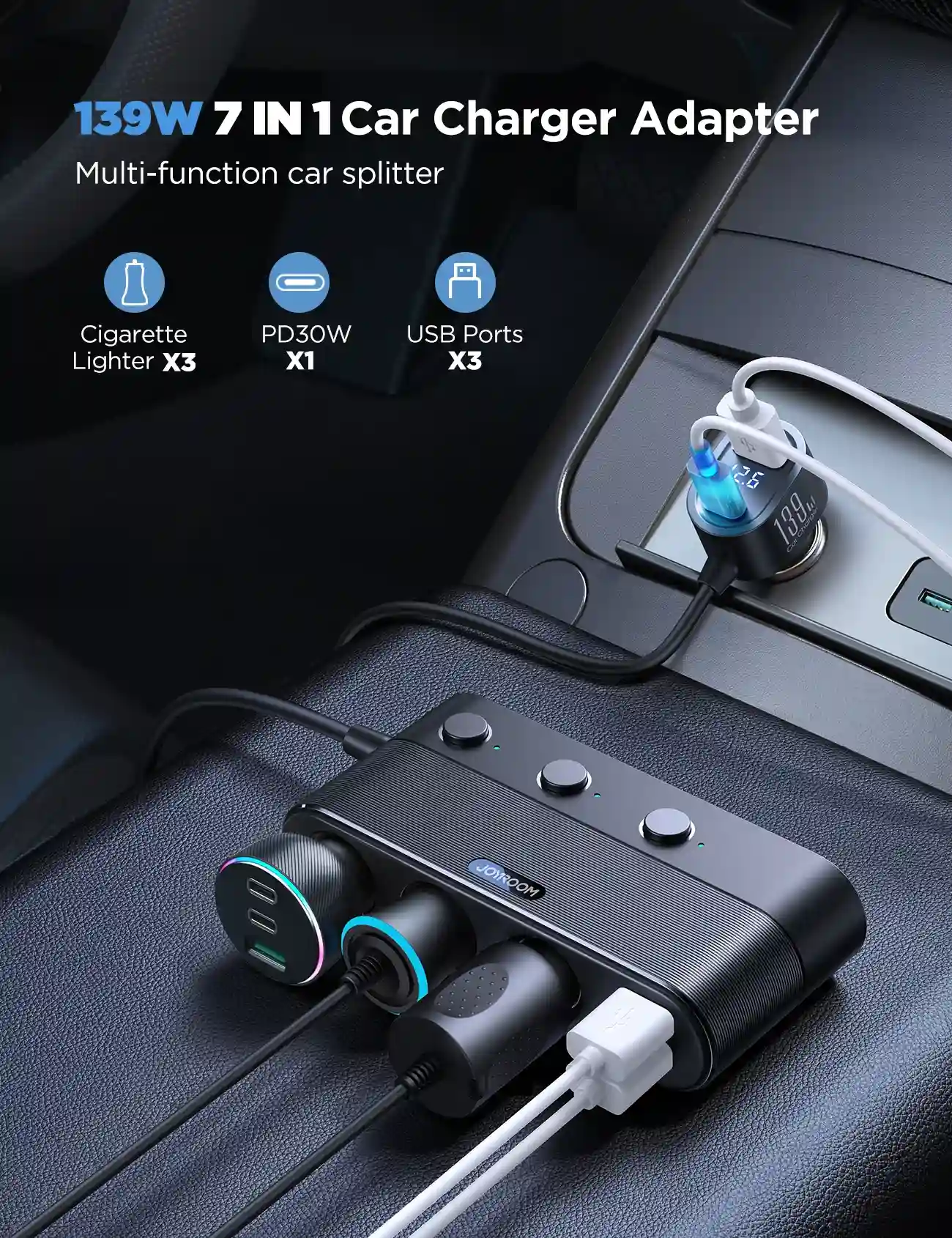

What Is The Joyroom JR-CCL01 7-in-1 Car Charger Splitter?
The Joyroom JR-CCL01 139W Car Charger Splitter is a heavy-duty, multi-zone vehicle power hub designed to transform a single cigarette lighter socket into a multi-port charging station. This model balances massive wattage capacity with extended reach.
Consequently, it eliminates front-to-back seat power arguments by offering a dual-unit system connected by a 1-meter cable, allowing both drivers and rear passengers to run power-hungry appliances and fast-charge mobile devices simultaneously.
Core Performance Features

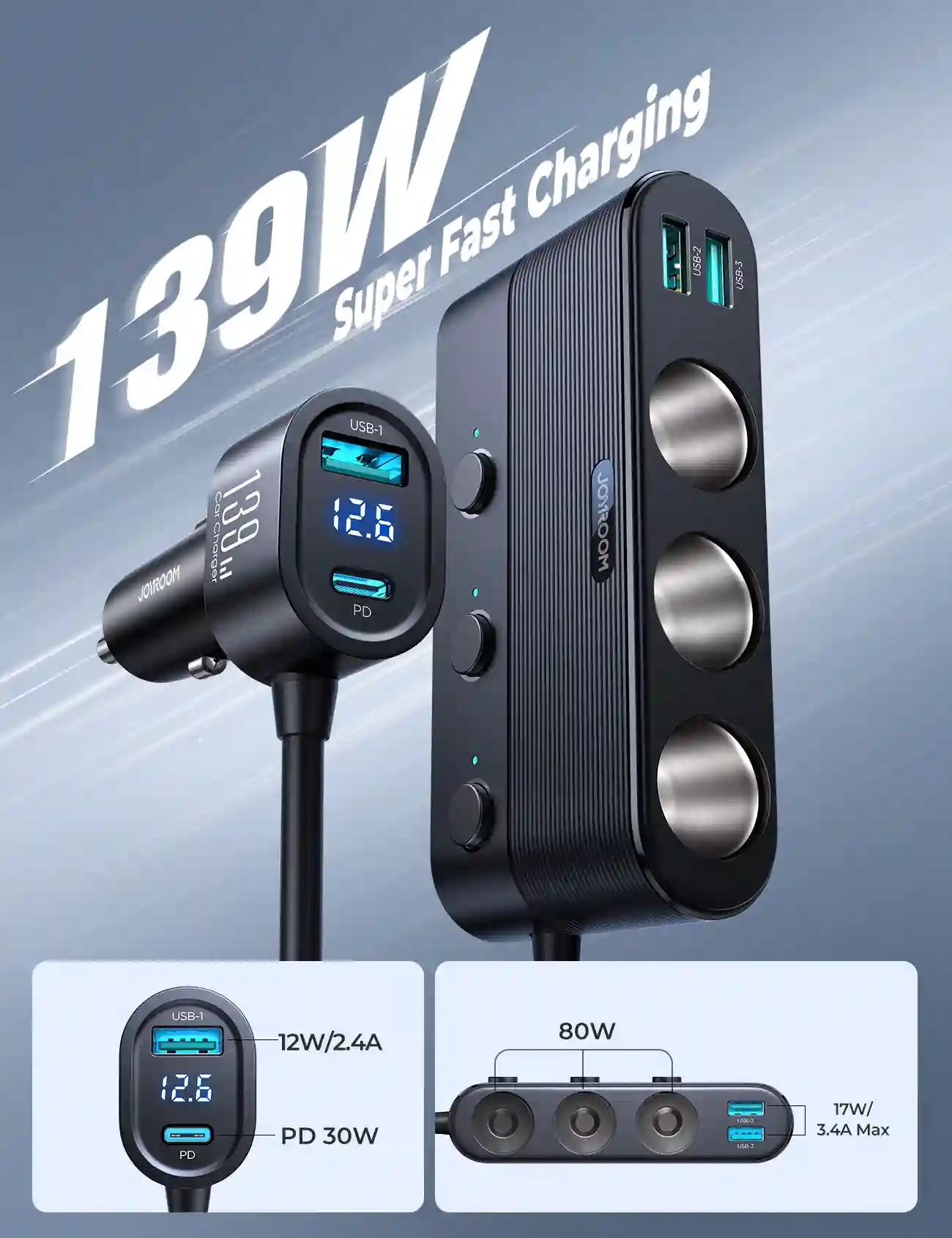

1. 139W Massive Multi-Device Total Output
Simultaneous 7-Device Charging: To begin with, the defining structural highlight of the Joyroom JR CCL01 is its high-density layout. It combines 4 USB charging ports with 3 cigarette lighter expansion sockets. As a result, it allows you to power up to 7 distinct devices at once—ranging from flagship smartphones to demanding cabin hardware like dash cams, car vacuums, GPS units, and portable refrigerators.
Super-Fast PD 30W Port: Furthermore, the primary front-seat module features a dedicated USB-C Power Delivery (PD) port capable of outputting a full 30W. This provides enough fast-charging speed to efficiently top off tablets, iPads, and modern smartphones up to 6 times faster than standard baseline car plugs.
2. Dual-Zone Extension Layout

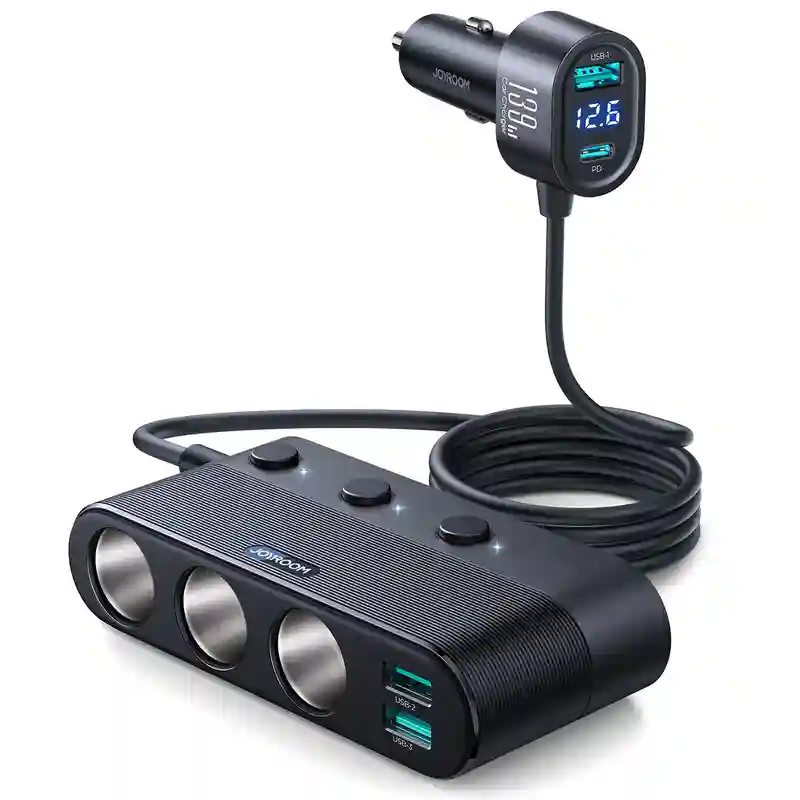

1-Meter Heavy-Duty Tether: First, the architecture splits across two main blocks tethered by a 1-meter-long extension cable. The input plug sits in the front console, while the expanded splitter box mounts further back. This layout ensures rear-seat passengers can easily manage their own connections without straining lines across the gear shifter.
5.3mm Thickened Safety Core: In addition, to handle massive concurrent electrical loads, the extension cord features a robust 5.3mm thick wire. This reinforced insulation minimizes energy drop-off and significantly lowers thermal feedback, preventing the cord from overheating even when running the splitter at full 139W capacity.
Power Management and Safety Controls
3. Integrated Real-Time LED Voltage Display
Live Battery Diagnostics: To monitor your vehicle’s alternator and battery health, the front-seat adapter houses an accurate LED digital voltmeter screen. It displays live voltage readings to 0.1V precision, allowing you to catch under-voltage or over-voltage issues before you run into ignition problems.
Color-Coded Status Thresholds: Meanwhile, the interface uses intuitive color cues to keep tracking simple while driving:
Green (12.6V–14.8V): System operating within normal parameters.
Yellow (12.0V–12.5V): Caution, battery voltage is running slightly low.
Red (Below 12.0V): Critical warning, battery requires immediate diagnostic attention.
4. Independent Power Controls & Protection
On/Off Toggle Switches: For efficient power management, the expanded rear-seat box features independent physical power buttons. This allows you to cut current flow to specific electronics instantly, saving you from repeatedly plugging and unplugging adapters to prevent phantom car battery drain.
6-Point Safety Architecture: Ultimately, the internal mainboard is reinforced with an enterprise safety chipset. It offers layered protection protocols against overcurrent, over-voltage, short-circuits, overloading, under-voltage, and excessive temperatures—fully protecting your vehicle’s native electrical grid.
Specifications Data
Technical Specifications Table
SKU- G56566P
| Component Zone | Interface Type | Output Values & Wattage Limits |
| Front Seat Module | Input Voltage Range | DC 12V – 24V (Compatible with Cars, SUVs, and Trucks) |
| USB-C (PD Port) | 5V $\equiv$ 3A, 9V $\equiv$ 3A, 12V $\equiv$ 2.5A (30W Max) | |
| PPS Output Protocol | 3.3V – 11V $\equiv$ 3A | |
| USB-1 (A-Port) | 5V $\equiv$ 2.4A (12W Max) | |
| Front Zone Total | 42W Max | |
| Back Seat Module | USB-2 + USB-3 (A-Ports) | 5V $\equiv$ 3.4A Shared (17W Max) |
| 3x Cigarette Sockets | 80W Max Total (Supports up to 80W on a single slot) | |
| Back Zone Total | 97W Max | |
| Combined System | Total Output Power | 139W Max Power Delivery |
Physical Properties
Material Composition: Impact-Resistant, Fire-Retardant ABS + Polycarbonate (PC) Casing
Front Car Charger Size: 45.5 × 26 × 74.4 mm
Rear Cigarette Splitter Size: 123.5 × 60.15 × 29 mm
Net Weight: Sturdy and heavy-duty at approximately 180 grams
Frequently Asked Questions (FAQ)
Wattage and Compatibility
Q: Can I use high-power appliances like a car kettle or a heavy air compressor on this splitter?
A: The expansion block handles an 80W total ceiling across the three cigarette lighter sockets combined. While it easily powers dash cams, car seat heaters, or small travel refrigerators, high-drain appliances that require more than 80W to 120W (like heavy-duty metal air pumps or heating kettles) will trip the safety circuit. Check your appliance’s wattage before plugging it in.
Q: Is this splitter compatible with 24V commercial trucks, or is it limited to standard 12V cars?
A: The Joyroom JR CCL01 features universal voltage adaptation that handles inputs ranging seamlessly from DC 12V to 24V. Consequently, it works perfectly across standard sedans, family SUVs, minivans, and large commercial shipping trucks without requiring extra voltage step-down converters.
Maintenance and Installation
Q: Does the rear splitter box roll around on the floorboards while driving?
A: Not at all. The rear splitter unit features integrated anti-slip padding along its back panel. It is designed to be mounted securely onto clean dashboard panels, plastic center consoles, or under-seat panels using the included automotive-grade adhesive tape or clip mounts, keeping your cabin organized and tangle-free.
Q: Will leaving this plugged into my cigarette socket drain my car battery overnight?
A: The Joyroom JR CCL01 features an automatic low-voltage cutoff safety at 11.5V to protect your vehicle from deep battery drainage. However, if your specific vehicle model leaves its cigarette lighter socket active even when the ignition key is completely removed, it is always safest to flip the independent power switches off or unplug the adapter during long storage periods.
