Description

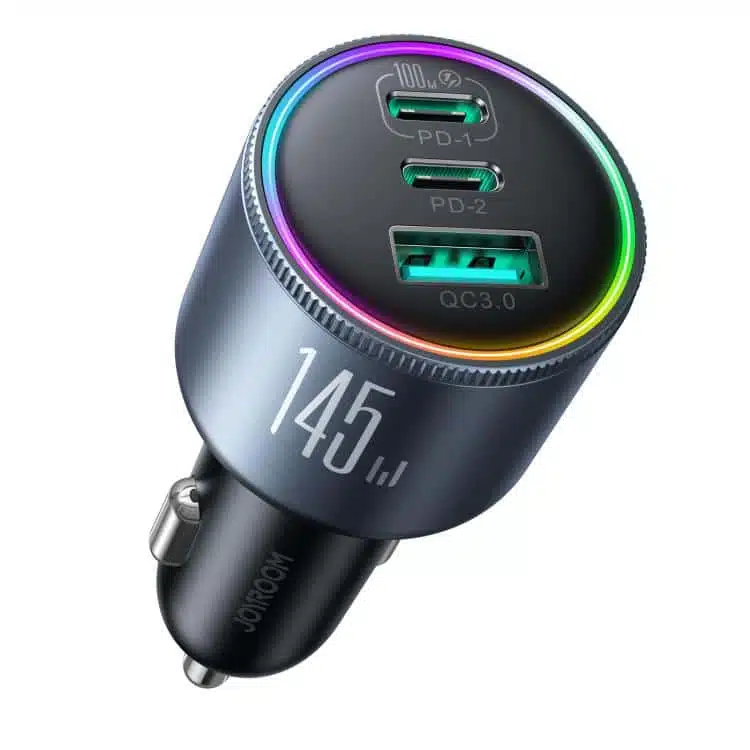

What Is The Joyroom JR-CCN07 High-Power 3-Port Car Charger?
The Joyroom JR-CCN07 3-Port Car Charger is a heavy-duty, high-performance automotive charging adapter designed to deliver serious, laptop-grade power directly from your dashboard. This model features an integrated buck-boost controller to maximize energy output.
Depending on the specific regional hardware batch or distribution market, it is optimized with a maximum combined ceiling of 145W or a peak layout reaching up to 175W. Consequently, it serves as an excellent mobile power station that handles demanding electronics like MacBooks, tablets, and flagship smartphones simultaneously without missing a beat.
Core Performance Features
1. Dedicated 100W Laptop-Grade Output
True Desktop Replacement Power: To begin with, the defining capability of the Joyroom JR CCN07 is its primary Type-C interface (labeled PD-1). This port outputs a massive 100W of dedicated Power Delivery (PD 3.0). As a result, it provides enough electrical energy to fast-charge high-capacity devices like a MacBook Pro, Dell XPS, or iPad Pro at full operational speeds while navigating highways.
Included 100W Certified Cable: Furthermore, out-of-the-box performance is guaranteed. Joyroom packs a heavy-duty 4-foot (1.2m) Type-C-to-Type-C data line in the package. Because this bundled cord is explicitly certified to handle a full 100W current lane, you avoid the safety hazards or speed drops associated with cheap, unrated baseline cables.
2. Multi-Protocol Intelligent Charging
Simultaneous 3-Device Charging: First, the faceplate houses a dense 3-port configuration consisting of two Type-C ports and one USB-A port. Because the internal motherboard features a dynamic smart-allocation chip, you can plug in a laptop, a smartphone, and a smaller accessory at the same time without triggering safety conflicts.
Broad Fast-Charging Standard Match: In addition, the internal circuitry is highly inclusive. It supports an extensive suite of power protocols, including PD 3.0, Quick Charge 3.0, PPS (Programmable Power Supply), Samsung AFC, and Huawei FCP. Therefore, it automatically scales its output voltage to deliver the safest and fastest possible rate for any attached device.
Thermal Management and Control Features
3. Advanced Cooling & Interference Suppression
Flame-Retardant Zinc Alloy Frame: To combat the intense thermal feedback from continuous high-wattage charging, the chassis combines fireproof polycarbonate (PC) with premium aluminum-spray accents. This heavy-duty composition dissipates internal heat much faster than traditional all-plastic bodies, keeping internal temperatures well within safe limits.
Zero Radio Signal Distortions: Meanwhile, the underlying motherboard features advanced linear voltage regulators and noise filtering. This premium engineering layout suppresses electrical noise. Consequently, it prevents annoying radio frequency interference with your car’s FM radio or sensitive tire pressure monitoring sensors (TPMS).
4. Rainbow Ambient Light Ring
Dynamic Nighttime Visibility: For added cabin styling and convenience, the top rim of the charger features a subtle, multi-color rainbow LED indicator light ring. This ambient loop adds a sleek tech aesthetic to your vehicle’s center console.
Soft, Anti-Glare Luminescence: At the same time, the light output is carefully calibrated to remain soft and indirect. This ensures that the glow never produces a harsh dashboard glare during midnight highway travel, allowing you to easily locate and swap connection lines in pitch-black conditions.
Dynamic Power Allocation Layout
When you utilize multiple charging ports concurrently, the intelligent mainboard splits its power paths systematically to ensure your highest-priority hardware receives maximum current flow:
| Port Deployment | USB-C1 (PD-1) Output | USB-C2 (PD-2) Output | USB-A (QC 3.0) Output | Combined Wattage Peak |
| Single Port (C1 Only) | 100W Max | Unused | Unused | 100W |
| Dual Ports (C1 + C2) | 100W | 45W Max | Unused | 145W (Or up to 175W batch ceiling) |
| Dual Ports (C1 + A) | 100W | Unused | 22.5W–30W Max | 122.5W–130W |
| All 3 Ports Active | 100W | 5V $\equiv$ 4.8A Shared Lane | 5V $\equiv$ 4.8A Shared Lane | Dynamic Maximum Ceiling |
Specifications Data
Technical Properties Table
SKU- G56566P
| Attribute | Detail |
| Input Voltage Parameters | DC 12V–24V $\equiv$ 5A Max (Universal fit for compact cars, SUVs, and large trucks) |
| USB-C1 Output (PD 3.0) | 5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=5A (100W Max) |
| USB-C2 Output (PD 3.0) | 5V=3A, 9V=3A, 12V=2.5A, 15V=2A, 20V=2.25A (45W Max) |
| USB-A Output (QC 3.0) | 5V=3A, 9V=3A, 12V=2.5A, 20V=1.5A (30W Max) |
| Safety Architecture | 6-Point shield against overcurrent, short circuits, and overheating |
| Product Dimensions | Highly optimized profile (Approx. 79 mm $\times$ 38 mm) |
Frequently Asked Questions (FAQ)
Power Output & Speeds
Q: Can this charger genuinely power a demanding laptop like a MacBook Pro or a Windows gaming rig?
A: Yes, absolutely. The primary USB-C1 port outputs a full, continuous 100W lane matching the exact charging profile of standard laptop wall adapters. For business notebooks, ultrabooks, and flagships like the MacBook Pro 14″/16″, it delivers top-tier charging performance directly from your car seat.
Q: Will plugging in a second phone drastically drop the charging speed of my laptop?
A: No, it will not. Unlike lower-end car chargers that cut power down across all lines when a second line is added, the Joyroom JR CCN07 utilizes a dual-buck controller system. This architecture keeps the primary USB-C1 port locked at its independent 100W power lane, even while the secondary ports share the remaining electrical capacity.
Vehicle and Hardware Fitment
Q: Is it safe to leave this charger plugged into my vehicle’s socket when the engine is turned off?
A: The Joyroom JR CCN07 features an intelligent static protection filter that draws virtually zero current when no device is connected. However, if your specific vehicle model leaves its 12V utility socket completely active even when the ignition key is removed, unplugging the adapter during multi-week storage periods is always recommended to preserve absolute battery freshness.
Q: Can I use this high-power charger in a heavy-duty 24V commercial truck?
A: Yes, you can. The internal transformer chip adapts seamlessly to any input threshold ranging from DC 12V up to 24V. Consequently, it runs perfectly inside compact consumer sedans, mid-sized crossovers, family vans, and large commercial long-haul trucks without requiring voltage step-down modifications.
